My New XD 2 speed build - completed

Post by menvert » Oct 24 2014 11:23pm

I thought I'd post my build for others benefit and and ideas;
This is a light (not superlight) comfort commuter done on the cheap
Components;
Hasa CR-9 Hybrid;
SHIMANO BR-M375 Mechanical Disc Brakes
SHIMANO TX-51M6 & SHIMANO RD-M360 8 Speed Deraillers
Sunrace 48-38-28 Front
DNP 11-28 on the rear
Sapim 'Strong' Butted 13/14g spokes and Sapim Polyax nipples
Mavic A119 700c 36h Road Rim 2014
Rear hub XD 2 speed '250w' hub @280rpm with disc brakes
12aH 36v LifePo4 battery from BMS 5 years ago
Thumb throttle
HWBS Brake-line brake cut-offs from XD same as this

It runs really nicely, averaging 26-27kpm for my commute, I will be adding a cruise controller shortly too.
EDIT: 24kg total weight, which should come down to about 22 when I get a new lipo brick, and Lyen CC module added now.

Okay some pics;
The XD kit ready to be assembled;
The controller close-up;
I attached the disc, however that black plastic bit should NOT be on there (I have since fixed)
Finally I laced the wheel 2x pattern;
dishing worked out pretty good, still off by about 2-4mm, but happy for my 1st laced wheel, and so much better than my last factory laced wheel, and discs dont care if dishing is off a little;
Freewheel from a few angles, I needed the torque washer on the inside for enough clearance;
Wheel in the bike,
Note I had to stretch the rear forks to fit the 147mm (for 7sp) into 135 dropout;
I have made this tool to help with wheel maintenence;
How freewheel attaches to bike (torque washer on inside);
How disc side attaches to bike (torque washer on outside);
Here are my trek handlebars;
Closeup of the display and handlebar setup
Battery tied to rack, and a makeshift cable container;
Last edited by menvert on Oct 26 2014 10:54pm, edited 2 times in total.
Current Bike - Hasa CR-9, rear XD 2 speed hub with disc, HK 16Ah 12s LiPo Li-Co, 11/48 gearing
Old Bike -26" MB BMSB 12aH 36v LifePo4, rear 350w 11/48 gearing
Daily commute of 36km, I also pedal sparingly due to knee concerns, so pretty FOT all the time, with light pedaling or heavier on hills...

User avatar
bowlofsalad   1 MW

1 MW
Posts: 1540
Joined: Feb 01 2013 10:28pm
Location: Midwest, USA

Re: My New XED 2 speed build - completed

Post by bowlofsalad » Oct 25 2014 12:48am

Maybe I missed them in your pictures, do you have any torque arms?

Are you sure it was wise to spread your frame's dropouts?

menvert   100 W

100 W
Posts: 216
Joined: Apr 29 2014 12:57am
Location: Brisbane, Australia

Re: My New XED 2 speed build - completed

Post by menvert » Oct 25 2014 2:00am

bowlofsalad wrote:Maybe I missed them in your pictures, do you have any torque arms?

Are you sure it was wise to spread your frame's dropouts?
No torque arms, never used them before on my 350w and this is 250w rated motor, I always saw them as being more necessary for either very high power or for front forks.
re: spreading the rear dropouts, not a lot of choice, too few frames support 145mm, My previous eBike is spreaded out quite a bit more in an alloy frame too, still good after about 5 years, certainly not recommended, but I think there are many on this site who have had to do this with no issue.
Current Bike - Hasa CR-9, rear XD 2 speed hub with disc, HK 16Ah 12s LiPo Li-Co, 11/48 gearing
Old Bike -26" MB BMSB 12aH 36v LifePo4, rear 350w 11/48 gearing
Daily commute of 36km, I also pedal sparingly due to knee concerns, so pretty FOT all the time, with light pedaling or heavier on hills...

d8veh   100 GW

100 GW
Posts: 5515
Joined: Dec 10 2010 10:45am
Location: Telford

Re: My New XD 2 speed build - completed

Post by d8veh » Oct 25 2014 3:52am

I've stretched a few frames. I don't believe it does any harm. My method is to use something like two planks of wood. You put them right down to the bottom bracket and then drive a wedge between them with a heavy hammer or mallet. You need to go at least 50mm wider than your target width, so something like 200mm total, and they'll spring back to take a permanent set at about 145-150mm. Aluminium alloy can be deformed like that; however, it work-hardens, so you can't do it more than a couple of times. You can't stretch aluminium frames with 20" wheels that far because they're relatively much stiffer.

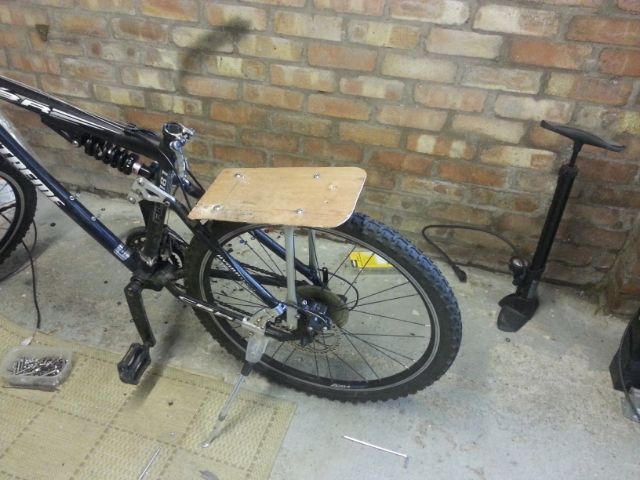

A comment about the above bike. Standard racks hold the battery too far back. It really needs to be right up against the seat-post and as low as possible for best handling. I'd put the spare wire and controller in one of those triangular tool bags at the top rear of the frame triangle, and I'd make my own rack to get the battery in the right position. To make a rack is very easy with some aluminium tube and a piece of plywood.
